Golf cart Battery Charger, 48V 13A and 36V 18A Trickle Battery Charger, 48 Vol



Golf Cart Battery Charger, 48V 13A and 36V 18A Trickle Battery Charger, 48 Volt Golf Cart Charger, 18-Amp Smart Charger, Lithium, LiFePO4, Lead-Acid AGM/Gel/SLA, EZGO RXV&TXT. Color - 18A Charger + Triangular plug. Product Dimensions - 7"D x 6"W x 5H. Specification Met - CE, FCC, ROHS, UKCA.

Input Voltage - 48 Volts. : Two voltages can be switched, you can manually select 36/48V battery.

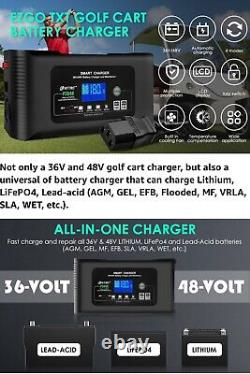

Equipped with triangular plug, fast charging for golf cart, automatic intelligent adjustment of charging power, CPU intelligent monitoring of the charging process, 36V 18Amp, 48V 13Amp ultra-high power, deep cycle battery charging, no damage to the battery. Large LCD display for charging and battery status; charging voltage and current, internal temperature, charging percentage, summer, winter mode etc. : Charge or repair 36V and 48V Lithium, LifePO4, Lead acid AGM/GEL/EFB, MF, Flooded battery, VRLA, SLA, wet battery... 9-STAGE SMART TRICKLE CHARGER : Protection and Maintainer.

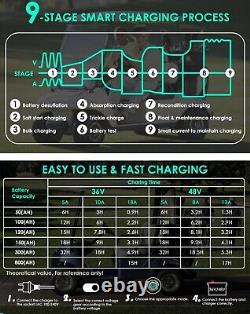

Plug and play 9-stage smart charging technology, when fully charged, it automatically enters into trickle charging, detects sulfate layer and acidic layer, and adopts the latest pulse repair function to restore the lost performance and prolong the battery life. Input Voltage: 100-240V 50/60Hz, Maximum Output Voltage/Current: 36V 18A, 48V 13A.

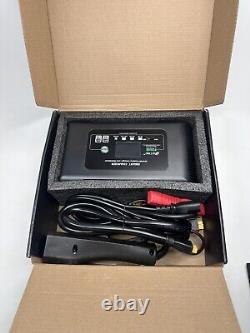

NOTE: It can not activate a depleted battery. : Temperature compensation in high temperature climate and undercharge in low temperature climate, reverse protection, cooling system, overcurrent, fireproof material, overcharging, short circuit, Intelligent control, Battery Trickle Charger with multiple protections ensures safe charging anytime, anywhere. Simple and easy to use, just plug it in and select the battery voltage and charging current. NEW REPLACEMENT AVAILABLE FOR ANY QUALITY ISSUE. Smart Charger, 2M Power Cord, 1M Cable Clamp, 1.1M EZGO RXV&TXT&3-Pin (Delta-Q) Instruction Manual.

Output current: 36V18A and 48V13A. AC Input: 100V-240V 50/60 HZ.

Output Voltage: 36V / 48V (Normal - Max: 40V-43.8V / 54V-58.4V). Suitable for 3-pin round plug, golf cart. Lithium / Lithium Iron Phosphate / Lead Acid (AGM, GEL, EFB, MF, Flooded, VRLA, SLA and Wet Cell) battery charger. Supported battery capacity: 20AH-400AH (higher capacity is possible, the higher the capacity the longer charging time required). Minimum starting voltage: greater than 26V.

Power and Load: 650 W max. Dimensions: 230 x 125 x 70 mm (9 4.9 2.7 inches). Charge only lithium batteries with a battery protection board (BMS). Charge batteries with a minimum current of 20AH or less.

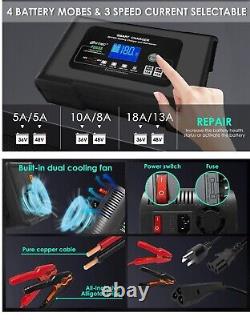

36V and 48V Smart Battery Charger. Q 1 : Why can't I reach the maximum charging current?

A 1 : In order to protect the battery, the system will automatically recognize the battery voltage and choose the most suitable current to charge the battery. When the battery voltage is low e.

36V battery voltage is lower than 30V, the system will automatically charge the battery with maximum current. (3-speed adjustable charging current, high current, fast charging).

Q 2 : Is the LifePO4 battery not fully charged? A 2 : When the battery is fully charged, it has a retracement function that reduces the charge by about 1V-4V, which is normal. Add small current to charge uninterruptedly after fully charged. Q 3 : Is the fan noisy?

A 3 : It is normal for the fan to generate wind.
